Midget 5-speed gearbox kit
£2400
This kit provides the parts required to replace the 4 speed transmission in A-series Midgets and Sprites with a Suzuki Jimny 5 speed unit.

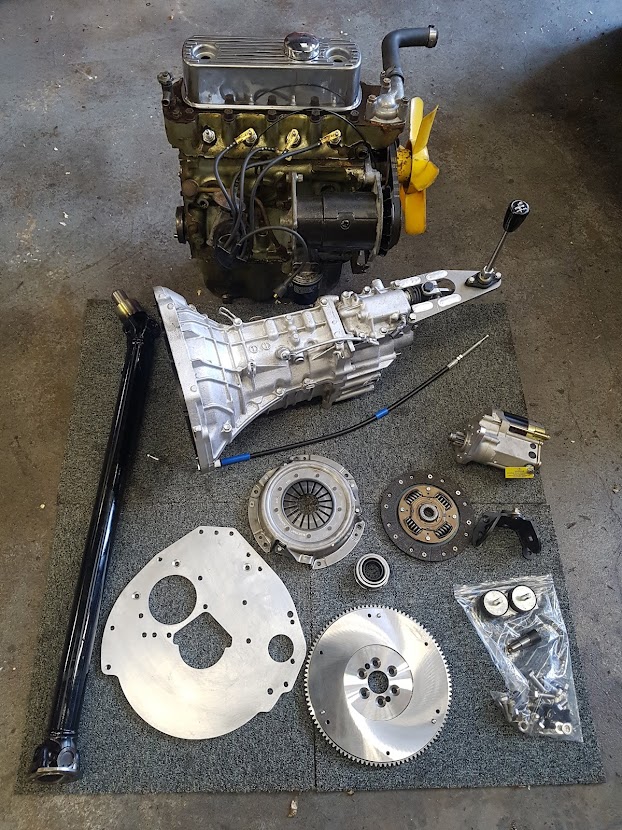

The kit includes an aluminium engine back plate, rear gearbox mounting bracket and AV mounts, gear change mechanism, billet flywheel (5kg), high torque starter motor, 190mm clutch kit (150Nm torque capacity), new propshaft, clutch cable conversion, fasteners and gaskets. All parts are new.
All you need to add is a gearbox and speedometer. We can supply fully reconditioned gearboxes, or recondition yours, see below for more details.
Suitable gearboxes can be found in 1995 – 2005 manual Suzuki Jimnys with either G13B or M13A engines.
The Suzuki gearbox is a compact, durable and modern 5 speed transmission. Weighing only a few kg more than the 4 speed BMC ‘ribcase’ gearbox and fitting a Spridget chassis without any modifications it is a great upgrade.
Synchromesh on all forward gears and an overdrive top gear transform how the car drives.
The crossmember does not need to be removed so there are no issues with IVA compliance and the structural integrity of the car is in no way compromised.
Please specify when ordering:
- Engine Size
948cc, 1098cc (10CG or 10CC), 1275cc or A Plus (Marina / Ital) - Master Cylinder type
Pre ’67: combined brake/clutch master cylinders
Post ’67: separate brake/clutch master cylinders - Gearbox type (if self sourced)
G13B single cam, 1995 – 2005
R7ME twin cam, 2001 – 2005
Related Products
Electronic Speedometer Kit
Smiths 120MPH electronic speedometer.
Sensor and mounting bracket to fit BMC differential.
Accurate, reliable and easy to install.
Negative earth only.
£250
Rebuilt Suzuki Jimny Gearbox
Stripped, inspected and reassembled with new bearings and seals. Supplied with 1 year warranty.
£800 exchange / £1200 outright

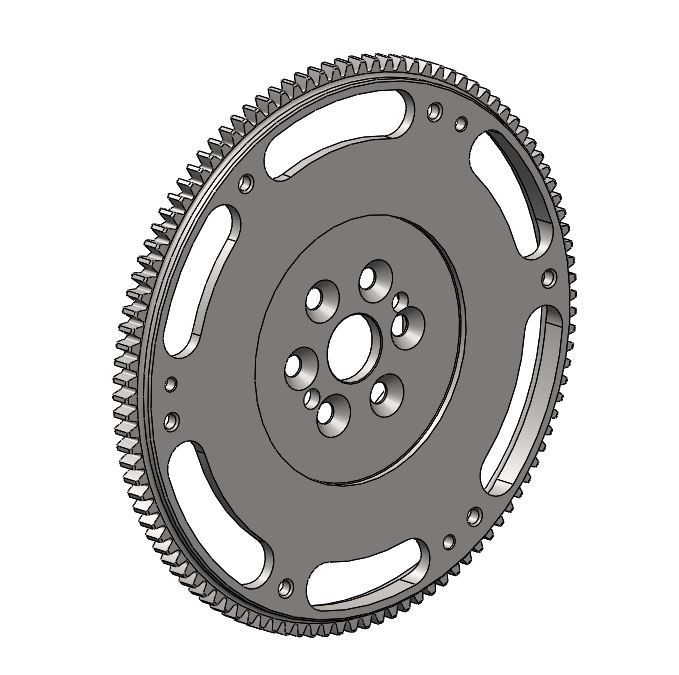

Race Flywheel
Optional ultra lightweight 2.7kg flywheel designed for track and competition use.
£100 (in addition to the kit cost)
Notes
- The Suzuki gearbox has no speedometer drive or sensors.
- The engine backplate is a direct replacement for the original BMC part so should be compatible with most aftermarket oil seal conversions. However, we have only tested with the OEM scroll seal arrangement and do not personally endorse or recommend any particular aftermarket oil seal kits or conversions.
- Gear stick exits in the stock location with throw close to that of the original. The gearstick thread is 5/16-18 UNC and directly compatible with original gear knobs.
- Relevant Installation Instructions:
BETD0006 – R7ME Reference Data
BETD0002 – 1275 A-Series to R7ME
BETD0001 – R7ME Fitting Kit
BETD0004 – Clutch Cable Conversion, Early
BETD0005 – Clutch Cable Conversion, Late
